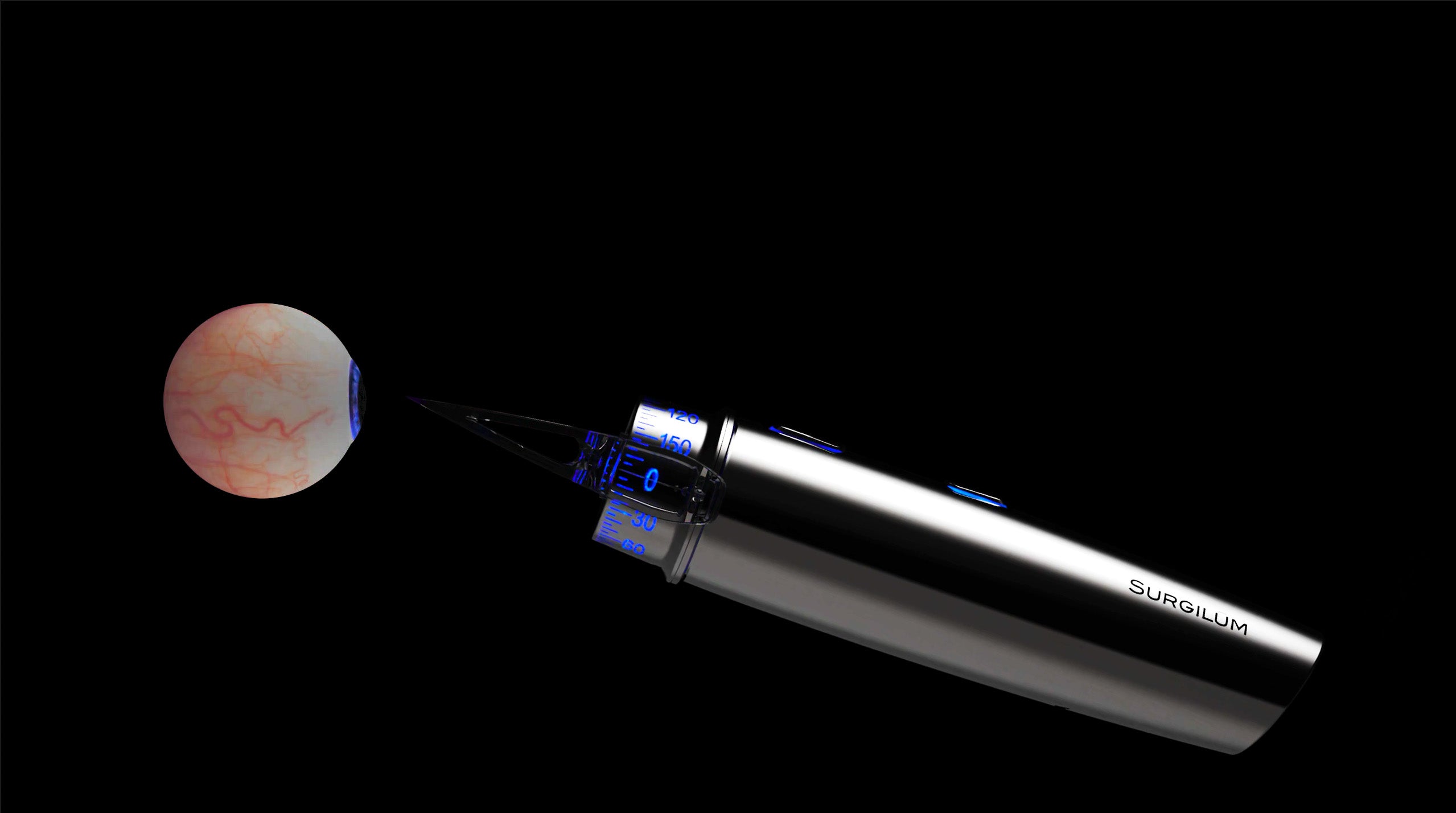

360° of Self-Leveling Alignment
Easily dial RoboMarker G2 to the desired axis to set for a wide range of applications...
A RoboMarker is a New Class of corneal marking systems
Illuminated Axis Dial
Backlit dial makes setting marks to the correct axis easy in any lighting

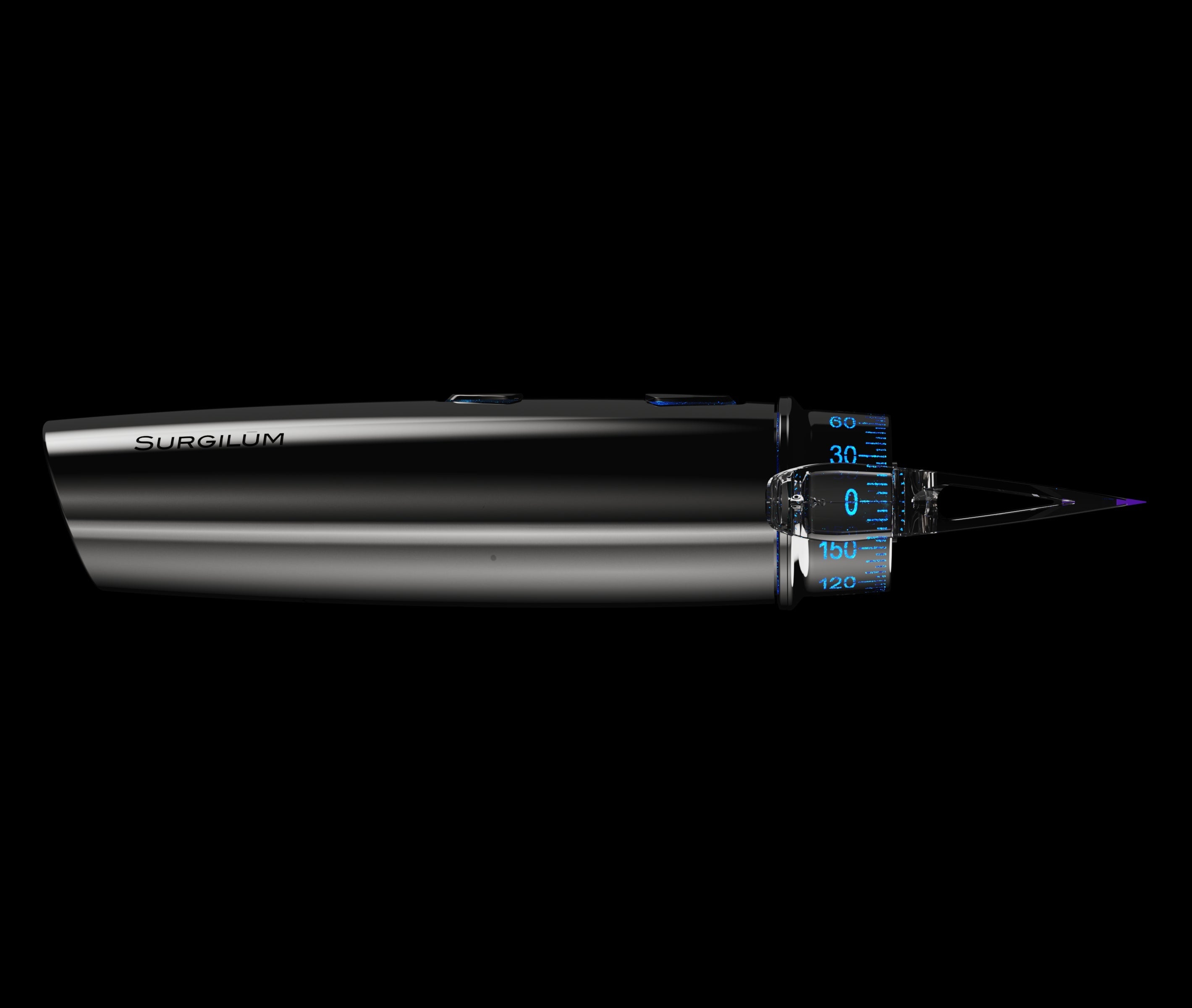

Guided Laser Approach
Diffractive optical element, laser diode, and accelerometer combine to ensure user accuracy
Projected target acts as a visible aid for proper patient positioning
Smart Flash notifies operator when user error threatens marking perfection
Rotary Brake
A mechanical brake prevents accidental twisting of tips caused by an asynchronous landing or shaky hands
Applied just before touch down
2-in-1 RoboTip G2
- Dual position RoboTips (scleral or corneal)
- Preformulated for multi spectrum visibility
- Marks that last 2+ hours
- Sterile, Single use RoboTips mitigates threat of TASS

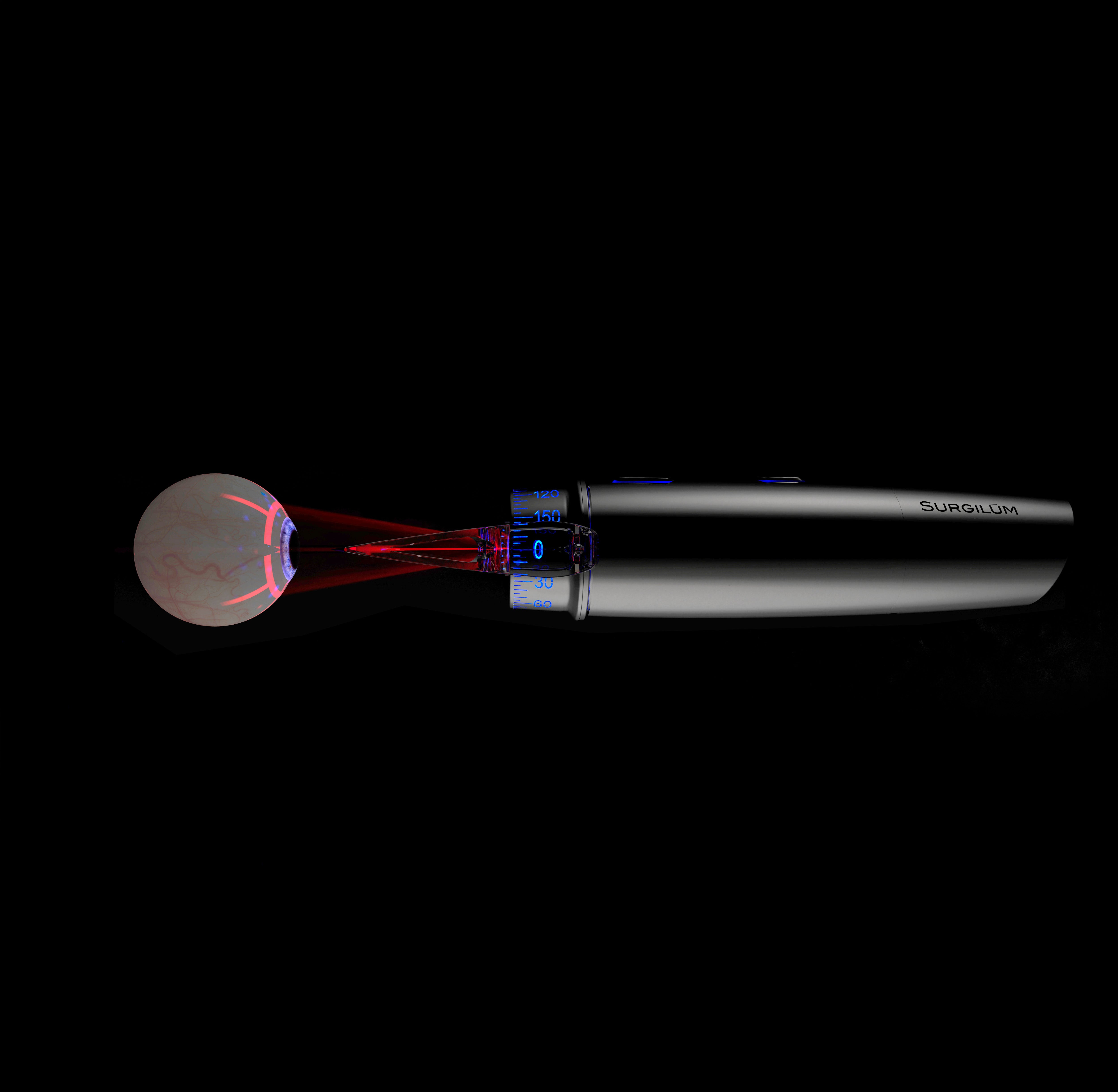

Guided Laser Approach

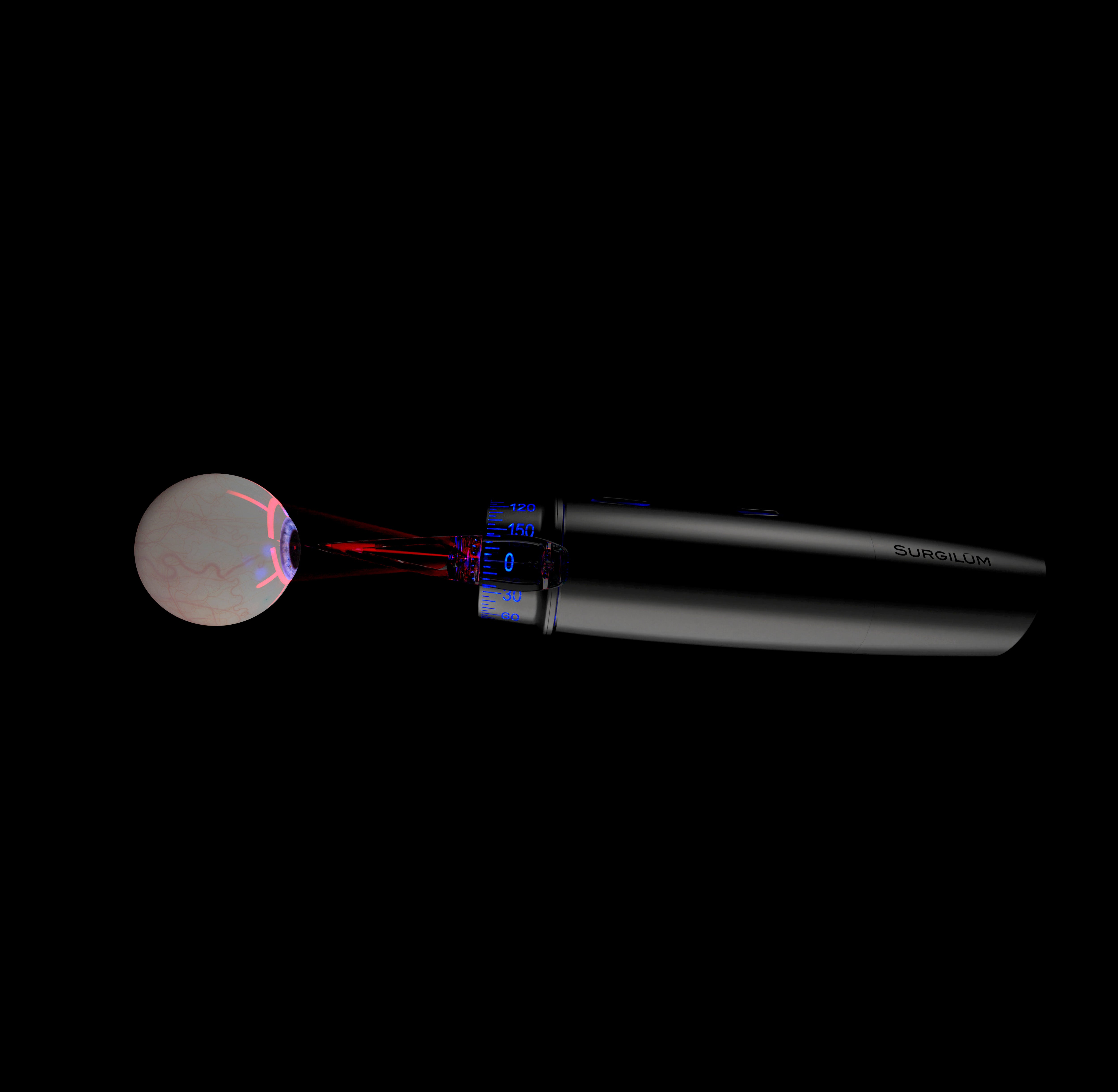

RoboMarker G2 further eases placing marks accurately with its integration of an accelerometer and DOE (Diffractive Optical Element) projected laser crosshairs. In "laser mode", RoboMarker G2 will begin flashing the targeting pattern whenever the device is within a level approach range. When the device becomes completely leveled, the targeting pattern will shine steadily to let you know it is positioned accurately. Too far out of level and the laser turns off.
Versatile and Safe
- Dual position RoboTips (scleral or corneal)
- Preformulated RoboTips for multi spectrum visibility
- Sterile, Single use RoboTips – no TASS
Efficient
- No wait, no autoclave
- Long lasting marks (2+ hours), mark multiple patients in pre-op
- Single step marking to desired axis eliminates secondary OR marking
- Eliminate return to pre-op between cases
Cost Effective
- Eliminate multiple instruments: markers, axis rings, digital alignments
- No space requirements. No setup or maintenance fees
- Low capital expense. Low cost per case.
Engineered For Excellence
Explore the rich features that make Robomarker G2 trusted by so many surgeons
prevents accidental rotation when landing on cornea
applied just before touch down
Exceptional marks every time. Laser marking aids in centration.
Set RoboTip G2 to any axis. Back lighting improves legibility in any lighting
Our unique dry formula lasts up to 2 hours and stays crisp and clear without bleeding.

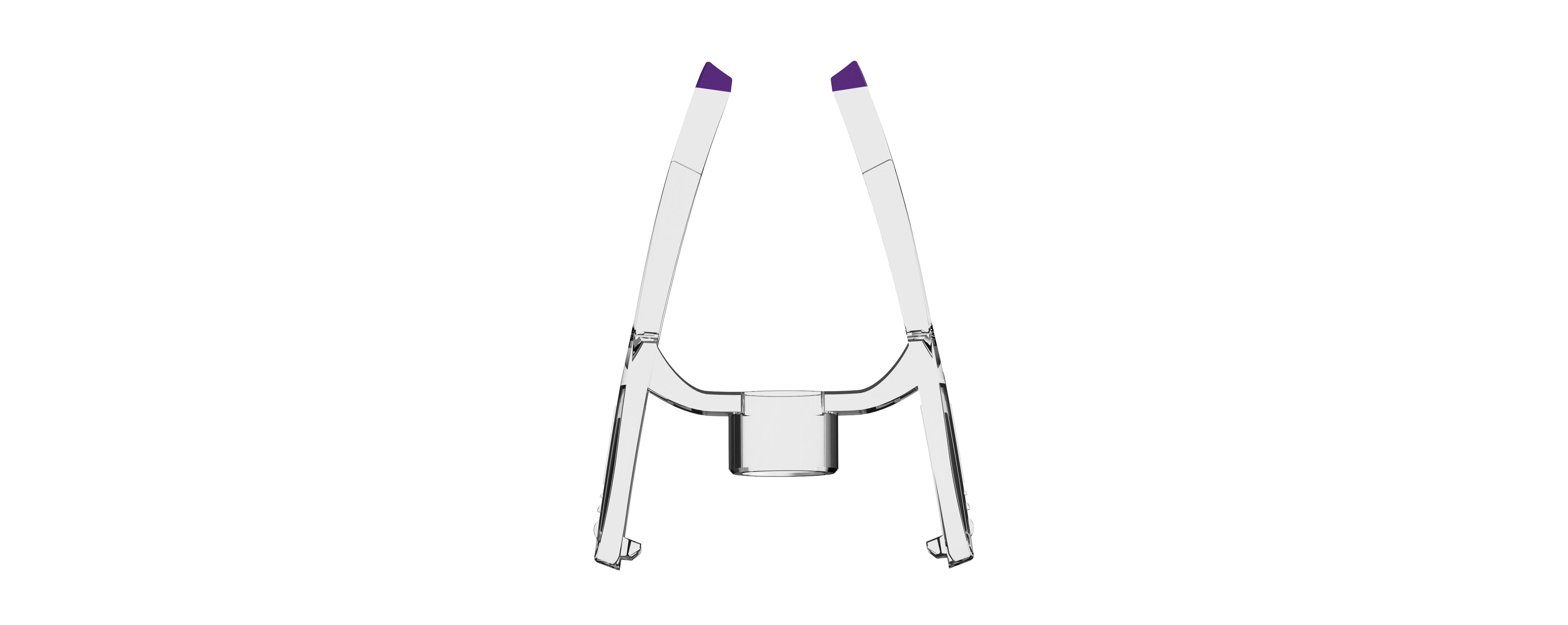

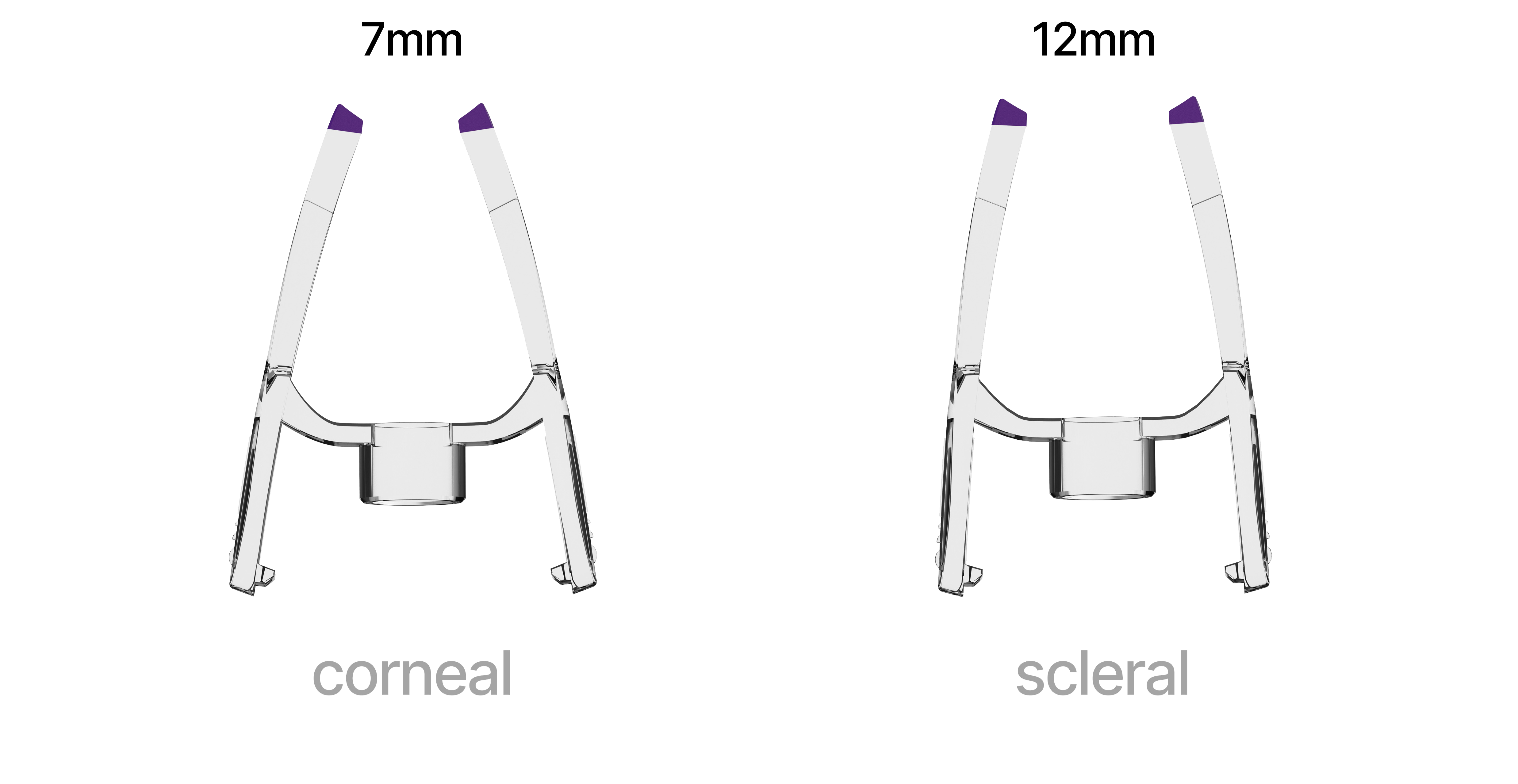

RoboTip G2 snaps into two positions to accommodate different marking widths. Position one, for scleral applications, is 12mm wide. Position 2, for corneal applications is 7mm wide.
Toggles dial illumination and laser activation
5 New Reasons to Love RoboMarker G2

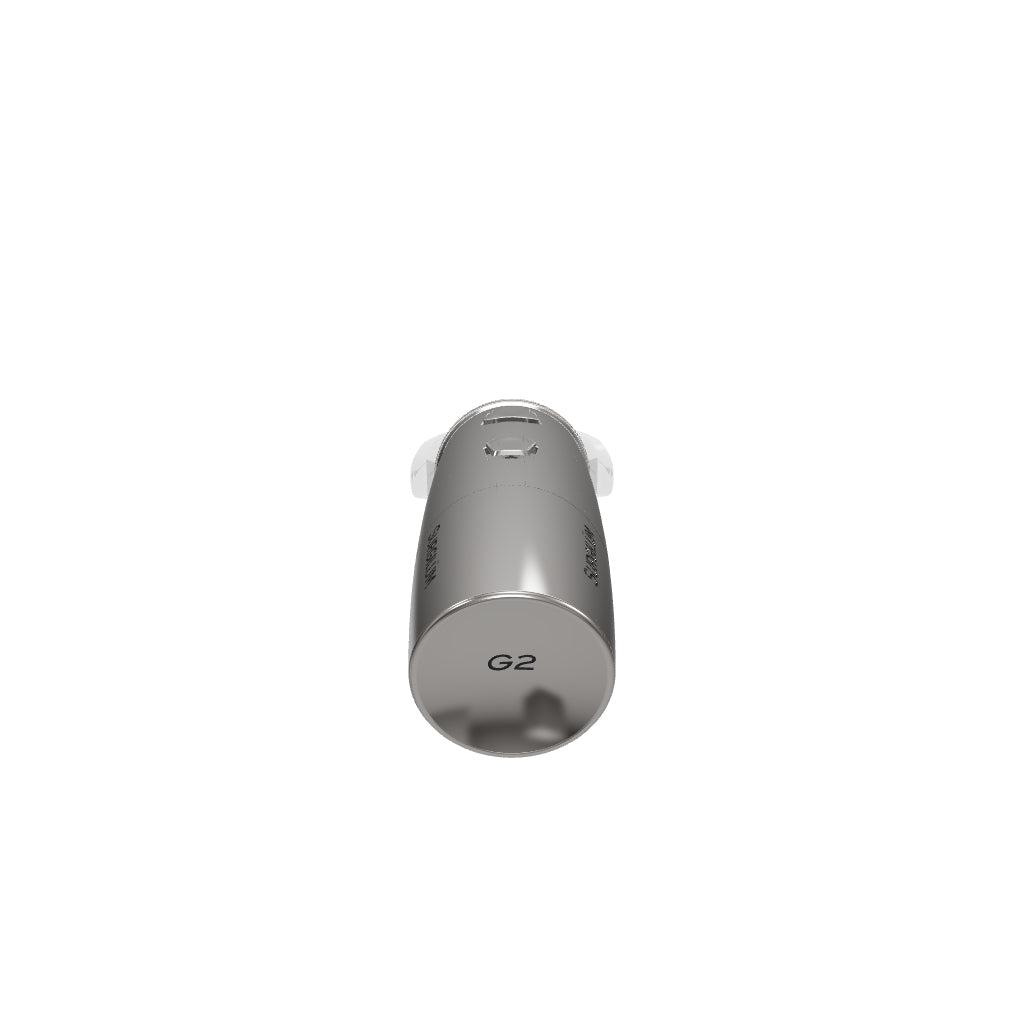

1. Larger hand piece for improved ergonomics
2. Backlit ring dial for improved visualization
3. Accelerometer activated Laser Targeting Projection
4. Mechanical Finger Brake
5. Dual functioning RoboTips G2
An Adjustable Tip.
Capable of marking in corneal...

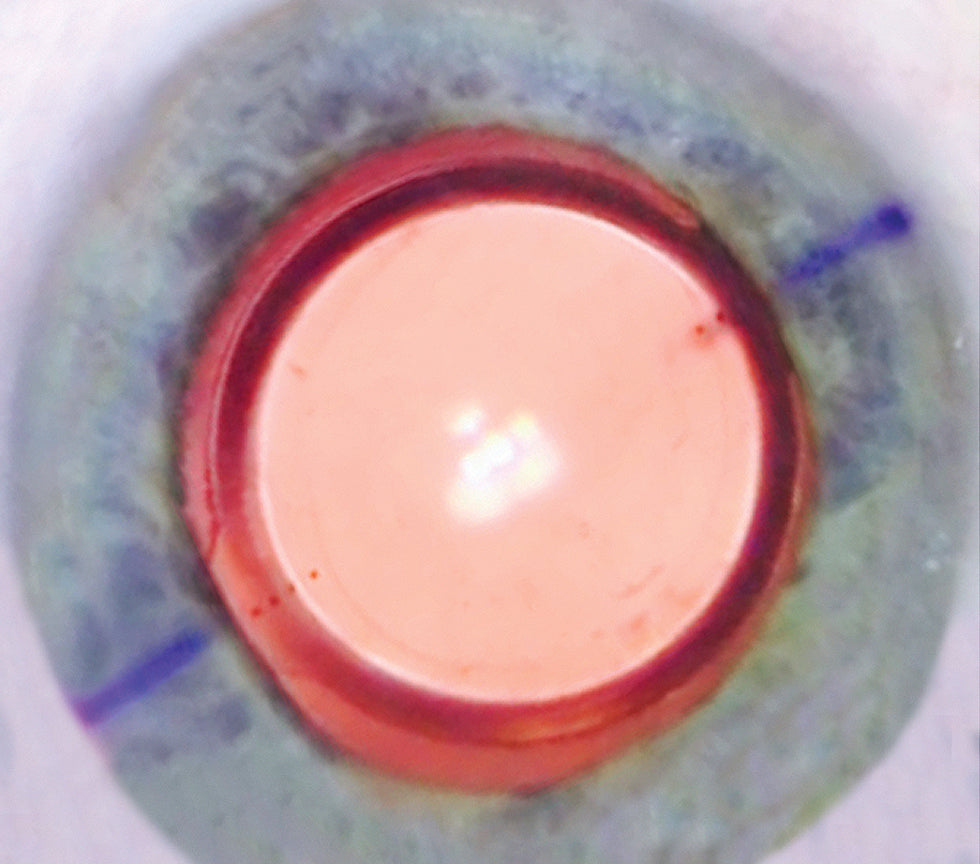

Long Lasting Marks. 2hrs+

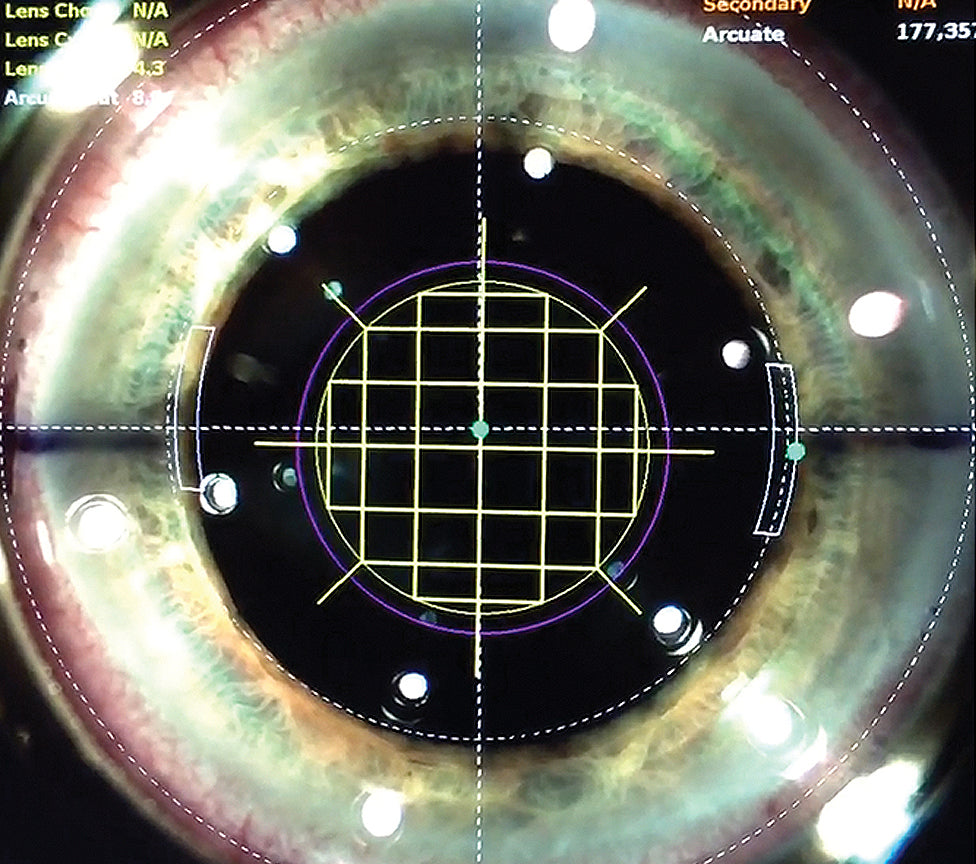

RoboTip G2 uses our proprietary dry formula which is compatible with infrared imaging. When our unique dry formula goes into solution on a wet cornea, the result is crisp marks that last up to 2 hours.
What makes our ink different?
Traditional marking with ink involves the somewhat futile task of securing wet ink in place on top of a wet cornea. It doesn't take long before the marks you tried to precisely place "bleed" all over the eye or are completely gone by the time you get to the OR.
The secret with RoboTip is the dry "ink". In our case we actually prefer to have a moist cornea. This allows the dry formula to stain the eye as it absorbs deeply into the cornea maintaining its linear shape and sharp contrast.
Long lasting marks mean you can mark several patients in a row in pre-op with the confidence your marks will still be there later in the OR.
Swipe to see
The Surgilūm Difference
Ophthalmic Surgical Experience
International Design Winner
average time saved per case
of alignment

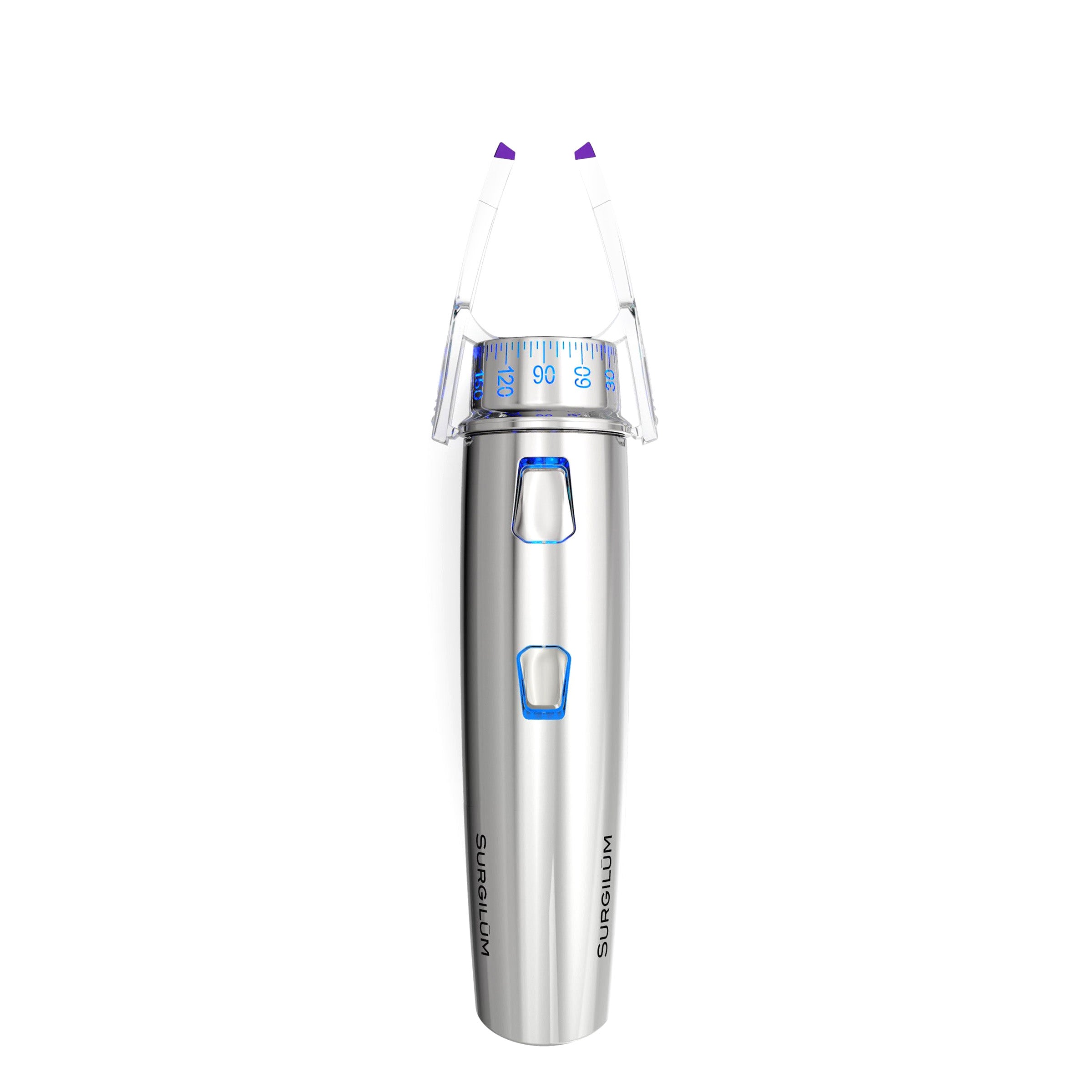

RoboMarker G2 - Stainless Steel
The RoboMarker G2 is an upgraded version of the base RoboMarker...
The RoboMarking System is the world's first handheld, self leveling, single step corneal marking system designed to place long lasting, highly accurate marks in a fraction of the time as other methods. You can think of it as a "smart marker" – the first of its kind.
The RoboMarker handpiece is responsible for the angular accuracy of the mark placement. High precision Swiss ball bearings and an internal pendular weight combine to ensure that markings are placed at the correct angle when referenced against the pendular weight which constantly levels to 90°.

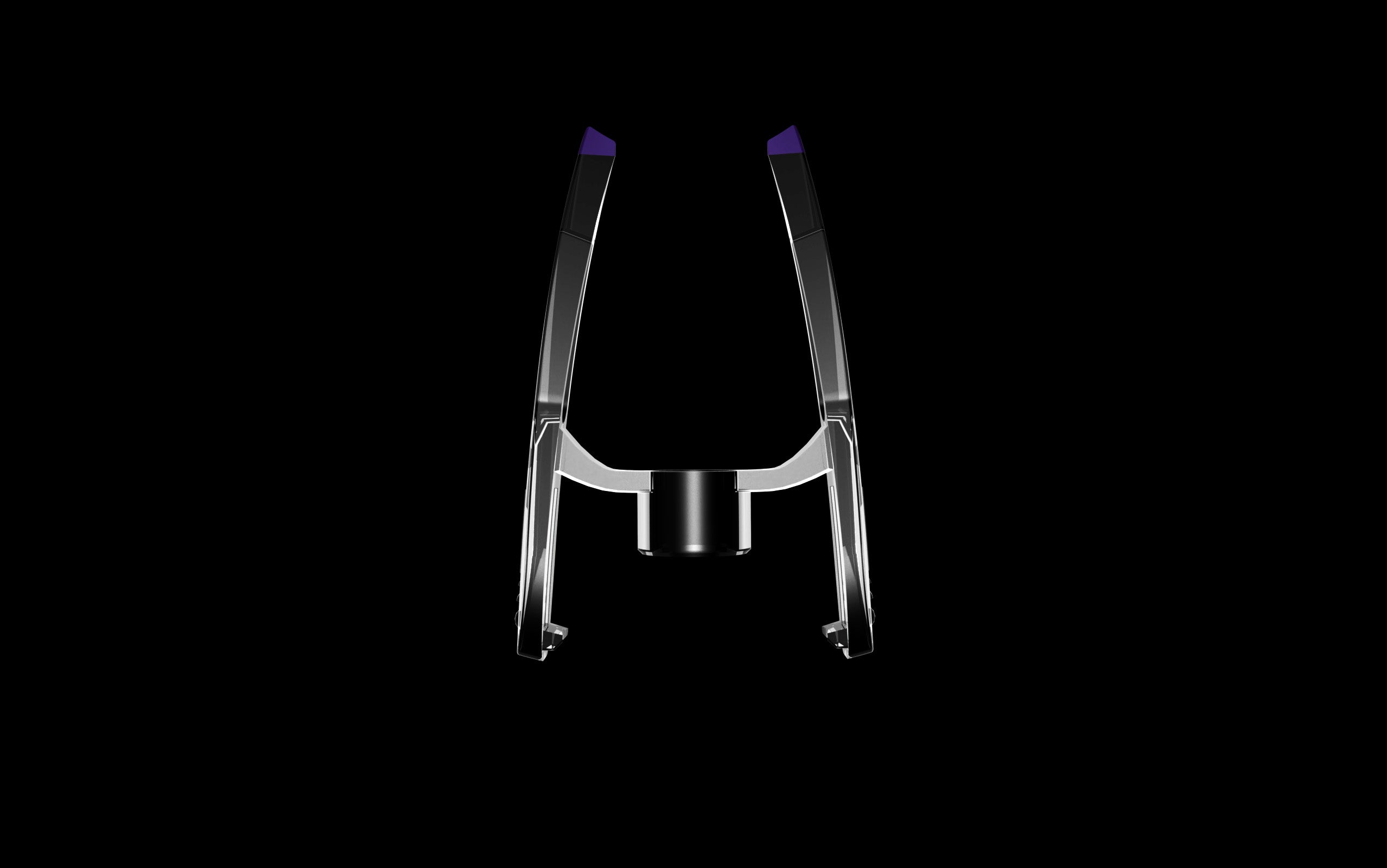

The RoboTip is the RoboMarker's sterile, single use, pre-inked companion. Simply insert the RoboTip and set the tip to the desired angle as indicated on the RoboMarker's axis dial and you are ready to mark your patients. Due to the sterile, single use disposable nature of the Tips, there is no need to wait on an autoclave. Because the RoboTips are pre-inked using our proprietary dry formula which holds fast on a wet cornea, expect thin crisp lines that take the guesswork out of incision placement.
A fixation light ensures the patient is marked in the same way they are measured when at the slit lamp.
--------
The RoboMarker G2 system improves upon the original model in a couple of standout ways:

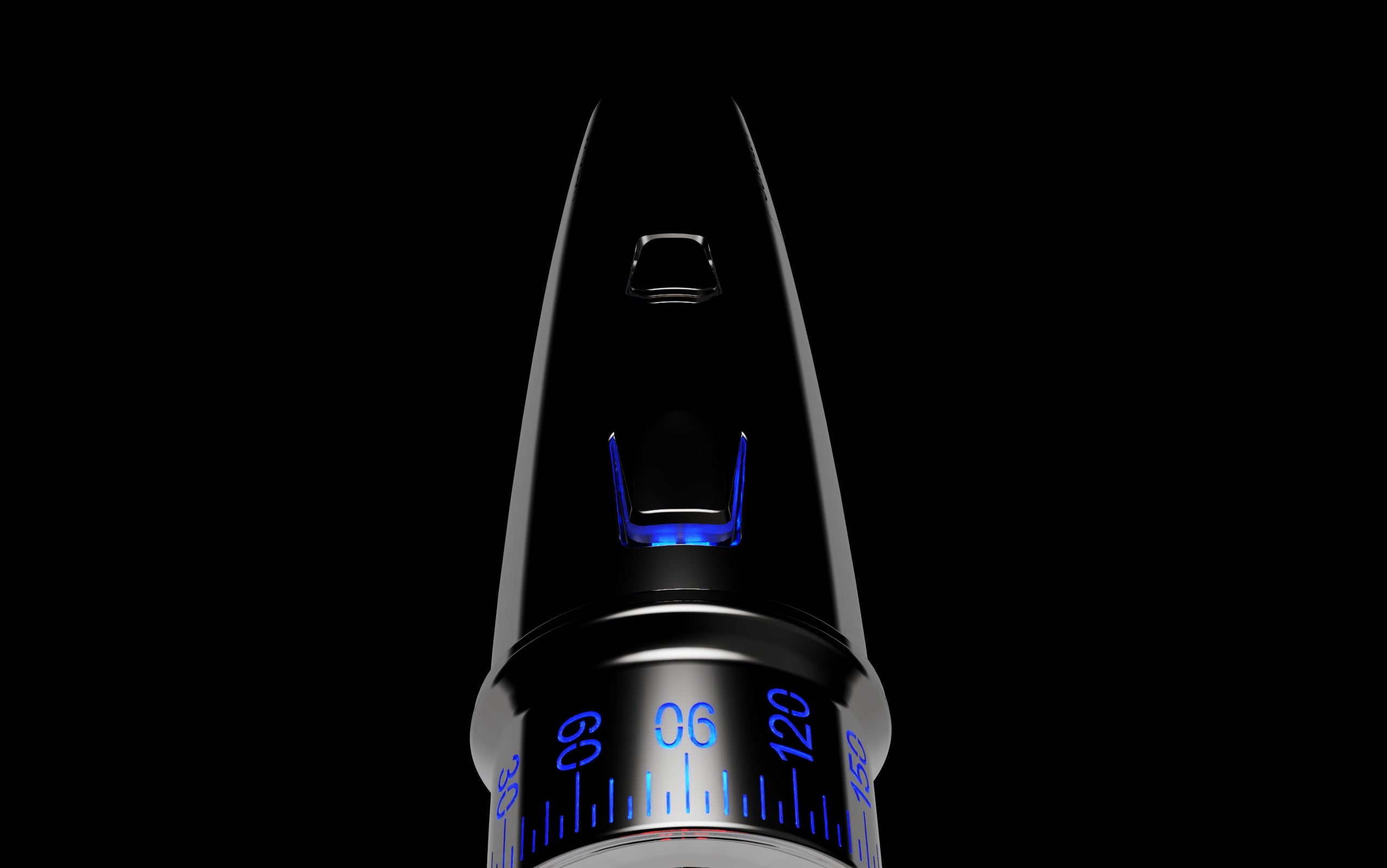

Laser Targeting DOE - A patient-safe, class 1 laser target projects from the behind fixation light to better guide the operator as they approach touching down on the eye.
Finger Brake Button - This mechanical feature was added to keep the RoboTip G2 from rotating should the operator fail to land both tips on the cornea simultaneously. The brake temporarily locks the tip to the marker to prevent unintentional rotation caused by landing in a crooked manner.

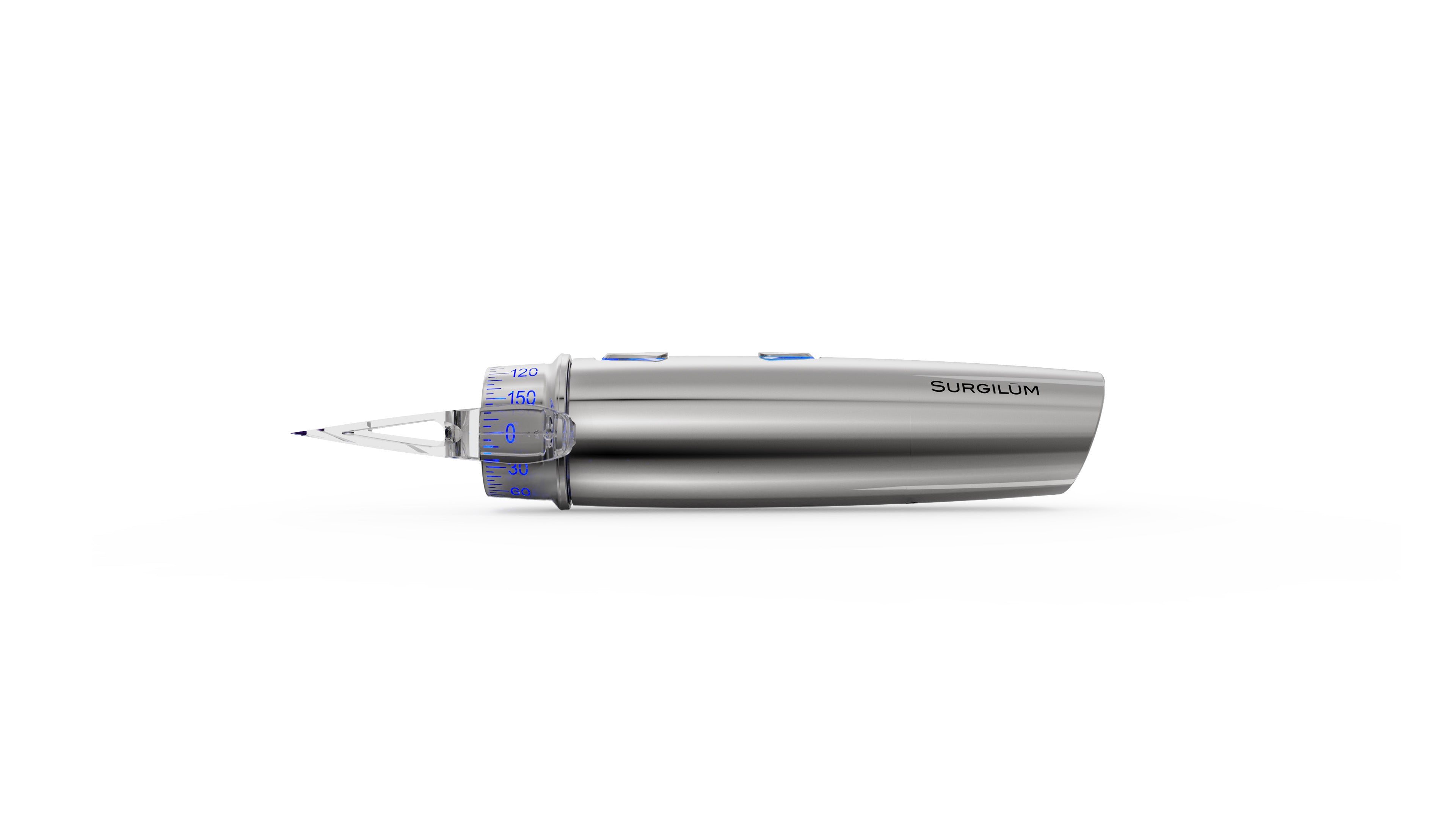

Larger Hand Piece / Illuminated Ring Dial - RoboMarker G2 is 20% larger than the original and features a backlit ring dial which translates to improved ergonomics when handling and increased legibility when aligning to the desired axis.
NOTE: Tips are sold separately
